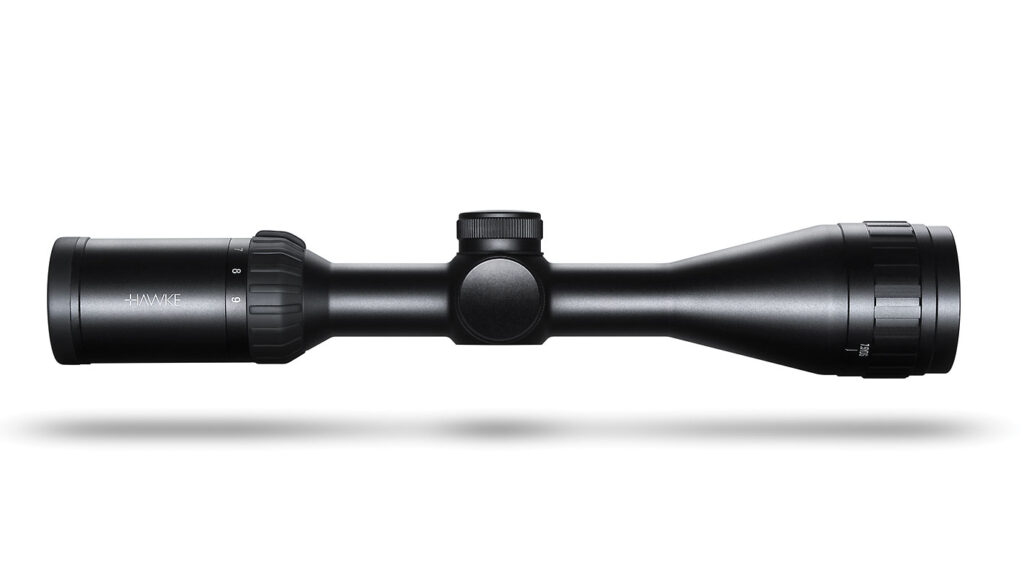

Hawke Airmax 3-9×40 Ao Amx

The Hawke Airmax 3-9×40 AO AMX rifle scope features 16 layer fully multi-coated optics for exceptional clarity and a wide view optical system ideal for airguns. Built with a glass etched reticle to withstand high recoil and an integrated adjustable objective for parallax adjustment.

• 1 inch mono-tube chassis for superior strength
• ¼ MOA low profile no-snag fingertip turrets
• Fast focus eyebell and high torque zoom ring
• Waterproof, shockproof, nitrogen purged
• All calibre rated

Specifications

Chassis

1" Mono-tube

Optical System

3-9×

Objective

40mm

Reticle

AMX

Illumination

N/A

Focus/Parallax

Adjustable Objective - 9.1m / 10yds to Infinity

Field of View

12.4 - 4.5m / 37.2 - 13.6ft @ 100m/yds

Eye Relief

89mm / 3.5"

Length

306mm / 12"

Weight

519g / 18.3oz

AMX Reticle

The AMX glass etched reticle is based on the spacing of a 10x Mil Dot and offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
